Brake vibration can appear as a pulsating brake pedal, a shaking steering wheel, or vibration felt through the vehicle when slowing down. Although brake rotor problems are one possible cause, similar symptoms can result from caliper faults, wheel or tire issues, and worn suspension components. This guide explains how to diagnose brake vibration systematically, identify the conditions that trigger it, and confirm the cause before replacing parts.

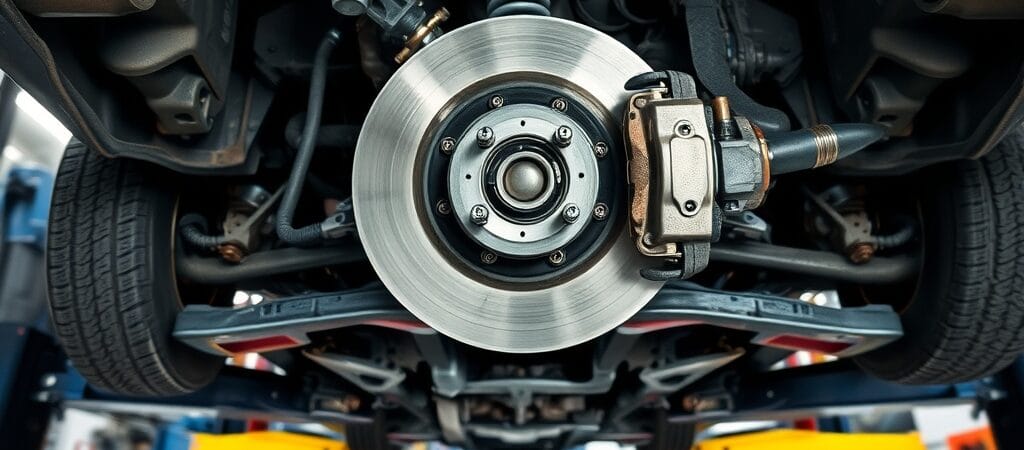

How to Diagnose Brake Vibration
Diagnosing brake vibration starts by determining whether the symptom occurs specifically during braking or is also present while driving at a steady speed. Brake pedal pulsation may suggest variations in braking force, while steering wheel vibration can help narrow the inspection toward the front brake and steering assemblies. Neither symptom identifies a failed component on its own.
For a broader explanation of why a vehicle may shake when slowing down, see our guide to Car Shakes When Braking.
Understanding Brake Vibration Symptoms
Brake vibration can appear in several ways:
Brake pedal pulsation: A repeated pulsating sensation while braking, which may be associated with brake torque variation or ABS operation.
Steering wheel vibration: Shaking transmitted through the steering system during braking, potentially involving front brake, wheel, tire, or suspension conditions.
Vehicle body vibration: Shaking felt through the seat or body, which may involve rear brake components or other rotating assemblies.
Unusual braking noises: Grinding, scraping, or other abnormal sounds that warrant additional inspection.
Record when each symptom occurs, its severity, and whether it changes with vehicle speed or braking pressure. These observations help guide testing but do not confirm a particular fault.
Common Causes of Brake Vibration
Several conditions may contribute to vibration during braking:
Brake Disc Thickness Variation or Excessive Runout: Uneven rotor thickness or excessive lateral runout can contribute to brake torque variation and pedal pulsation. A rotor that looks uneven is not necessarily warped.
Uneven Brake Pad Contact or Deposits: Uneven friction-material transfer, pad wear, or installation problems may contribute to inconsistent braking.
Brake Caliper Problems: Sticking slide pins, binding pistons, or other caliper faults may cause uneven pad contact, overheating, or abnormal wear.
Worn Steering or Suspension Components: Excessive movement in bushings, ball joints, or steering components may become more noticeable under braking loads.
Wheel and Tire Problems: Tire damage, wheel distortion, or imbalance may produce vibration that becomes more noticeable during deceleration.
ABS Activation or Malfunction: ABS can produce normal pedal pulsation during intervention. Unexpected activation under ordinary braking conditions requires diagnosis.
These are possible causes, not confirmed repairs. Inspection and measurement are needed to identify the actual problem.
Initial Diagnostic Steps for Brake Vibration
When diagnosing brake vibration, start with straightforward assessment techniques to pinpoint the problem.
Verifying the Complaint
Confirm whether vibration occurs only when the brakes are applied or also during normal driving. Note the speed, braking pressure, road conditions, and whether the symptom is felt through the pedal, steering wheel, or vehicle body.
A controlled road test may help when the vehicle is safe to drive. Do not deliberately reproduce severe vibration, reduced braking performance, or unstable handling at high speeds. If the vehicle is unsafe, arrange professional inspection without further driving.
Inspecting Tires and Wheels
Begin with visible checks of the wheels and tires:
Inspect for bulges, cuts, uneven wear, or other tire damage.
Check cold tire pressures against the vehicle manufacturer’s recommendations.
Inspect wheels for visible damage and confirm wheel fasteners are correctly secured.
Consider wheel balance and wheel or tire runout if vibration also occurs without braking.
Tire wear or steering vibration alone does not prove an alignment or balance fault. Perform further checks based on the observed symptoms.
Detailed Inspection of Brake Components
If the initial checks do not reveal the cause, focus on the brake components.

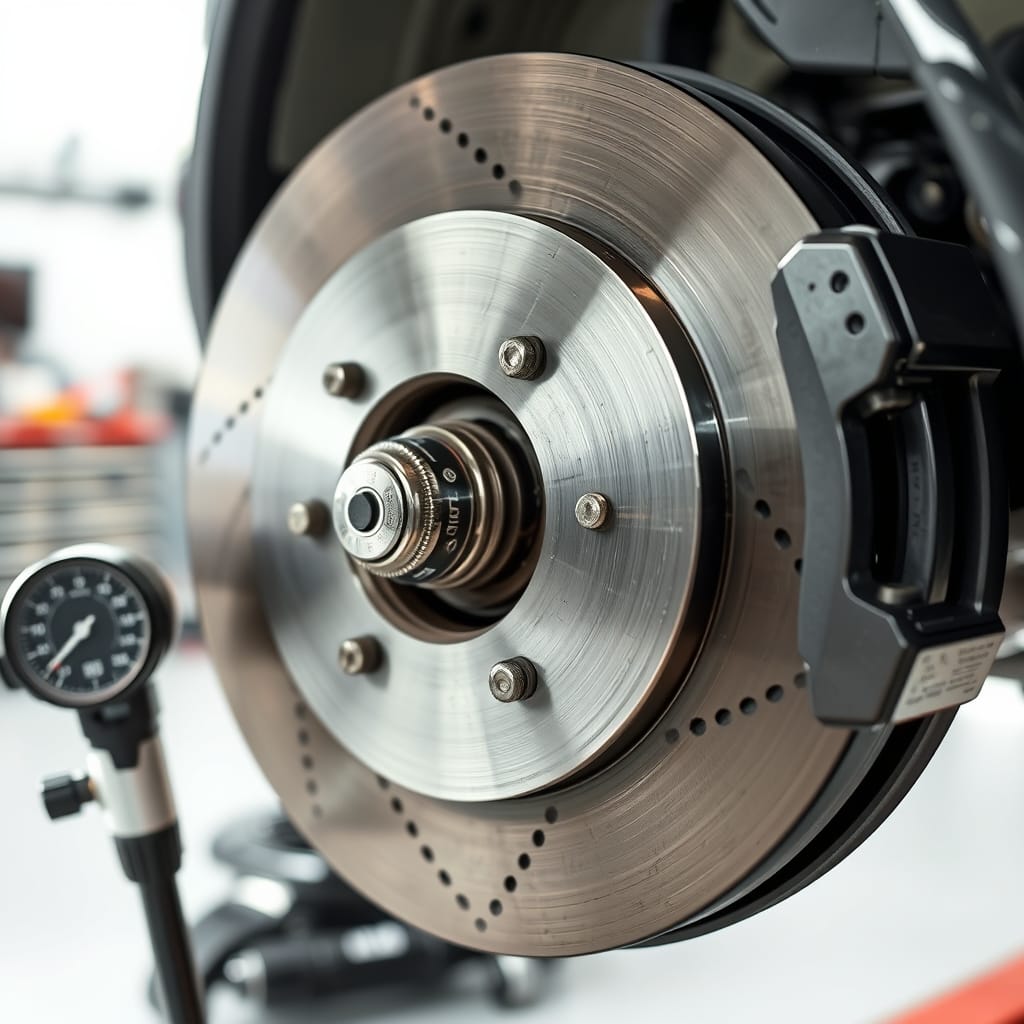

Checking Brake Rotors and Pads
Inspect brake discs and pads for scoring, cracks, heat damage, uneven wear, and abnormal friction-material deposits. Visual inspection provides useful clues, but measurements are needed to confirm many rotor-related faults.
Where indicated, measure brake disc lateral runout with a dial indicator and disc thickness variation with a suitable micrometer at the specified measurement locations. Compare results with the vehicle manufacturer’s service limits.
Check pad condition and contact patterns, as well as hub and rotor mounting surfaces where relevant. Excessive runout or thickness variation may require correction of the underlying mounting or component problem and appropriate rotor service or replacement.
Do not assume that a rotor is warped simply because braking causes vibration. Resurfacing or replacement must also respect the manufacturer’s minimum thickness and service requirements.
Evaluating Brake Calipers
Inspect the caliper assembly for evidence of binding, uneven pad wear, damaged boots, fluid leaks, and abnormal heat buildup. Where applicable, assess the condition and movement of the slide pins and verify that the piston and related components operate according to manufacturer procedures.
A sticking caliper can contribute to uneven braking and excessive heat, but these symptoms can also have other causes. Confirm the fault before servicing or replacing components.
Assessing Suspension and Alignment Issues
Suspension and alignment considerations also play a critical role in diagnosing brake vibration.
Identifying Worn Suspension Components
Inspect relevant steering and suspension components for excessive play, damaged bushings, worn ball joints, and loose or damaged connections. These conditions may allow abnormal movement under braking loads and contribute to steering wheel vibration or instability.
Use the vehicle manufacturer’s inspection procedures and wear limits. Do not replace suspension components based solely on the presence of vibration.
Examining Wheel Alignment
Wheel alignment should be considered when tire wear, steering pull, recent impact damage, or other observations suggest an alignment problem. Compare measured alignment angles with the manufacturer’s specifications and investigate worn or damaged components before making adjustments.
Alignment problems are not a primary explanation for brake pedal pulsation. Correcting alignment alone should not be expected to resolve a confirmed brake rotor or caliper fault.
Utilizing Diagnostic Tools
Using diagnostic tools can further assist in effectively identifying brake vibration issues.
Using an OBD-II Scanner
A scan tool is not required for every brake vibration complaint. However, if ABS, traction control, or stability control warnings are present—or unexpected ABS activation is suspected—a scan tool capable of accessing the relevant brake-control module may provide useful trouble codes and live data.
A basic engine-only OBD-II scanner may not support these systems. Interpret any retrieved codes as diagnostic clues, not proof that a specific component has failed.
Measuring Rotor Runout
Use a properly mounted dial indicator to measure brake disc lateral runout according to the manufacturer’s procedure. If thickness variation is suspected, measure disc thickness at the specified locations with an appropriate micrometer.
Lateral runout and disc thickness variation are different measurements. Compare each result with the correct vehicle-specific specification rather than applying a generic limit.
If measurements exceed specifications, investigate mounting surfaces, hub condition, rotor condition, and other relevant factors before selecting a repair.
Professional Diagnosis and Repair Considerations
In some cases, diagnosing brake vibration may require professional expertise.
Situations Requiring a Technician
Professional diagnosis is recommended when braking performance is reduced, the vehicle pulls significantly during braking, vibration is severe, brake fluid leaks are suspected, or unusual noises suggest component damage.
A qualified technician is also appropriate when specialized measuring equipment, brake-control system diagnostics, or complex suspension inspections are required.
Common Repair Options for Brake Vibration
Repairs depend on confirmed diagnostic findings and may include:
Correcting excessive brake disc runout or thickness variation through an approved service procedure.
Replacing brake discs or pads when measurements, damage, or wear justify replacement.
Servicing or replacing a confirmed faulty caliper or related component.
Repairing damaged steering or suspension components.
Correcting wheel, tire, or alignment faults when testing identifies them.
Diagnosing and repairing an ABS-related fault when supported by relevant test results.
After repair, verify proper brake operation and confirm that the original vibration has been resolved under safe, appropriate conditions.
Safety Considerations When Diagnosing Brake Vibration
Brake vibration may indicate a condition affecting vehicle safety. Do not continue driving if braking performance is reduced, the vehicle becomes unstable, a wheel appears loose, or severe grinding or other abnormal symptoms occur.
Before inspection, park on a stable, level surface and follow the manufacturer’s lifting and support procedures. Never work beneath a vehicle supported only by a jack.
Allow hot brake components to cool before handling them. Avoid inhaling brake dust, and use appropriate protective equipment and cleaning methods.
Brake repairs must follow vehicle-specific service procedures, including correct fastener torque, component specifications, and any required electronic parking brake or ABS-related procedures.
Frequently Asked Questions
What causes brake vibration?
Brake vibration may result from brake disc thickness variation, excessive runout, uneven pad contact, caliper problems, or wheel and suspension faults. The cause must be confirmed through inspection and testing.
How can I confirm brake vibration?
Observe whether the vibration occurs specifically during braking and where it is felt. A safe road test, visual inspection, and targeted measurements can help determine the source.
What should I check first when diagnosing brake vibration?
Start by checking the circumstances of the vibration, visible tire and wheel condition, and obvious brake-related warning signs. Follow with brake and suspension inspection as indicated.
When should I seek professional help for brake vibration?
Seek professional assistance if braking performance is reduced, vibration is severe, steering becomes unstable, or specialized inspection and measurement are required.
Can an OBD-II scanner help diagnose brake vibration?
A compatible scan tool may help when ABS or stability-control faults are suspected. However, many mechanical causes of brake vibration will not generate diagnostic trouble codes.
Final Checks
Diagnosing brake vibration requires identifying when the symptom occurs and using inspection and measurement to confirm its cause. Brake disc thickness variation, excessive runout, caliper faults, and wheel or suspension problems can produce similar symptoms. Avoid replacing components based on vibration alone. Follow vehicle-specific procedures, repair only confirmed faults, and verify that braking performance and vehicle stability are restored.
